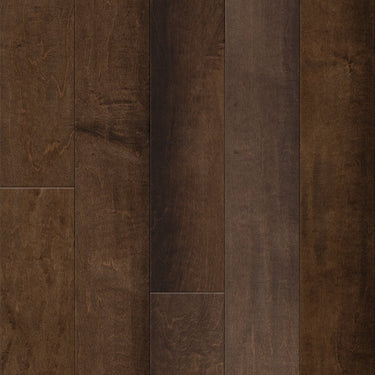

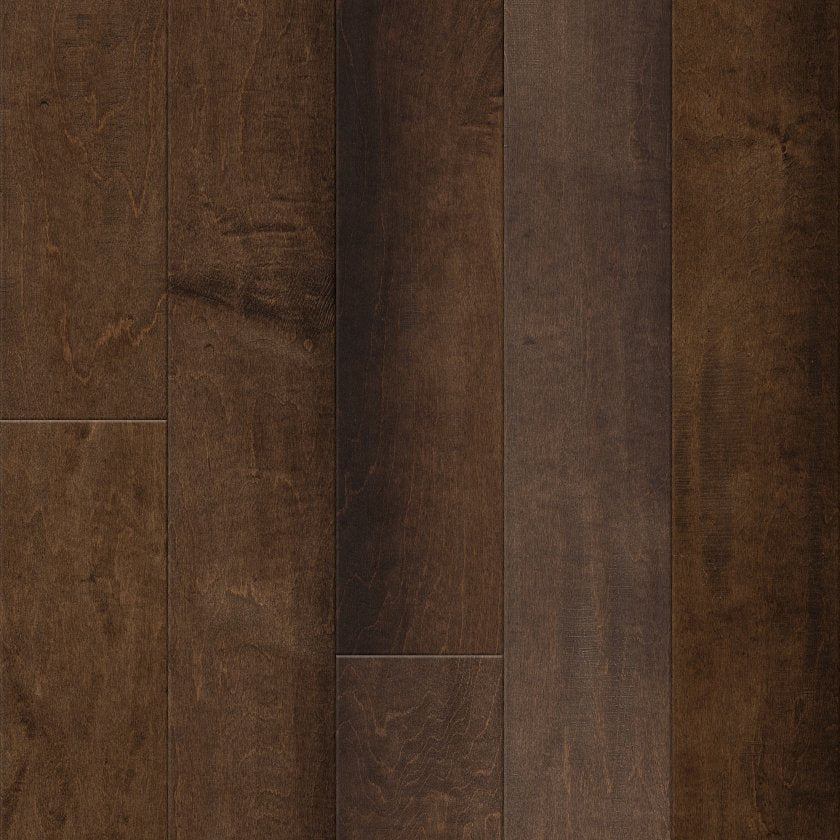

Castello Anderson Tuftex Bernina Hardwood

Dimensions: 1/2" x 5" x Random Lengths
Construction: Plank
Species/Design: Maple Engineered Hardwood
Coverage: 15.9/SQ.FT
Edge Style: Beveled
Finish: Luster Lock® Ultra
Install Method: Staple, Glue, Float
Where to instal: All Grade Levels
Surface Type: Smooth
Warranty: 50 Years

Base Board
Quarter Round
Reducer
Stair Nose
T Molding
Threshold
3 in 1 Ultra Adhesive
Silent Step Ultra Underlayment

ENGINEERED HARDWOOD FLOORING INSTALLATION GUIDELINES
Important Information Before You Begin
It is EXTREMELY IMPORTANT that you read and understand this information completely prior to starting, since improper installation can void the warranties.
Installer/Owner Responsibility
Carefully inspect ALL material prior to installation for defects. Materials installed with visible defects are not covered under warranty. Remember – Wood is a natural product that can vary in color, grain, and contains natural characteristics that varies from plank to plank and is to be expected. We do not warrant against these natural variations from plank to plank or variations from sample to plank. Remember – If you are not satisfied with the flooring prior to installation, contact your dealer – DO NOT INSTALL the flooring. Accepting or rejecting the material must be done on full shipment of quantities only, not carton by carton or plank by plank. Material is manufactured to exceed industry standards (ANSI/HPVA EF 2009).

We urge you, as the final inspector to inspect for proper color, finish, style, and quality PRIOR to installation. Verify that the looring is the correct material. Care should be taken at this time to remove or repair particular characteristics you do not desire. Manufacturer declines responsibility for any costs incurred when plank(s) with visible defects have been installed.
The use of stain, filler, or putty stick for the correction of minor defects during installation should be accepted as normal procedure.
5% cutting allowance, depending on layout, must be added to the actual square footage amount needed. (Diagonal, herringbone, or bordered installations will require a higher percentage)

Tools and Equipment Needed:
Broom or Vacuum, Tape Measure Chalk Line & Chalk, Hammer, Moisture Meter, Hand Saw, Electric Miter Saw/Table Saw, Pry Bar, Safety Glasses, Color Wood Filler, NIOSH designated Dust Mask

CAUTION: WOOD DUST
The International Agency for Research on Cancer has classified wood dust as a nasal carcinogen. The sawing, sanding, and/or machining of wood products can produce wood dust that can cause respiratory, eye, and skin irritations.
Equipment should be equipped with a dust collector to reduce airborne wood dust. Wear an appropriate NIOSH designated dust mask to reduce exposure to airborne wood dust. Avoid contact with eyes and skin. In case of irritation, flush eyes or skin with water for at least 15 minutes. In cases of severe irritation; seek immediate medical attention. For further technical or installation questions or to request a Product Speciication Data Sheet contact the manufacturer. 1- 800- 441-7429
WARNING Drilling, sawing, sanding or machining wood products can expose you to wood dust a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to
p65warnings.ca.gov/products/wood-dust

Pre Installation & Jobsite Conditions
It is the installer/ owners’ responsibility to ensure that the jobsite conditions and jobsite subfloor are environmentally and structurally acceptable prior to the installation of any hardwood flooring. The manufacturer declines any responsibility for failures or deficiencies of hardwood flooring resulting from or related to sub-floor, sub-surface, or job-site environmental conditions. All substrates must be clean, flat, dry, and structurally sound.

Subfloors must be clean and free of dirt, curing compounds, sealers, drywall mud, paint, wax, grease, urethane, or other materials that may affect the integrity of the flooring material or adhesives used to install the flooring.
Install cabinets prior to flooring to prevent damage to the flooring. Shaw is not responsible for removal of cabinets in the event of a claim. All subfloors and subfloor systems must be structurally sound and must be installed following their manufacturer's recommendations. Local building codes may only establish minimum requirements of the flooring system and may not provide adequate rigidity and support for proper installation and performance of a hardwood floor. Whenever possible install the planks perpendicular to the floor joists for maximum stability. Our warranties DO NOT cover any problems caused by inadequate substructures or improper installation of said substructures.

Test wood sub floors and wood flooring for moisture content using a pin-type moisture meter. Take readings of the subfloor – minimum of 20 readings per 1000 sq. ft. and average the results. In most regions, a “dry” subfloor that is ready to work on has a moisture content of 12% or less and the wood should be within 4% of the subfloor moisture content.
ASTM F-2170 – in-situ relative humidity – 75% RH or less is acceptable. Readings greater than 75% RH require the use of a proper vapor retarder.
ASTM 1869 - The moisture content for concrete subfloors registered after a calcium chloride test should not be greater than 3 pounds per 1000 square feet of area. If it exceeds these limits, DO NOT install the flooring. Before moisture testing begins, the slab must be cured for a minimum of 30 days.
Basements and crawl spaces must be dry. Use of a 6 mil black polyethylene is required to cover 100% of the crawl space earth. Crawl space clearance from ground to underside of joist to be no less than 18” and perimeter vent spacing should be equal to 1.5% of the total square footage of the crawl space area to provide cross ventilation. Where necessary, local regulations prevail.
The subfloor must be flat, meeting a minimum of 3/16” within 10’ or 1/8” in 6’.

Concrete subloors - Grind high spots. Use cementitious patching and leveling compounds that meet or exceed Shaw’s maximum moisture level and pH requirements. Use of gypsum-based patching and/or leveling compounds which contain Portland or high alumina cement and meet or exceed the compressive strength of 3,000 psi are acceptable. Follow the leveling compound manufacturer’s instruction. Leveling compounds must be allowed to thoroughly cure and dry prior to installation of wood flooring.
Wood subloors - For staple down application use layers of 15lb. felt or wooden shims to fill low spots. Staples must be able to penetrate for holding power.

All “wet” work – i.e. – paint, drywall, concrete, masonry, plumbing must be complete and dry well in advance of delivery of hardwood flooring. Gutters and downspouts should be in place and the exterior grade complete to allow for proper drainage of water away from the building’s exterior perimeter. Flooring should not be exposed to extremes of humidity or moisture.
Permanent HVAC should be on and operational a minimum of 5 days and maintained between 65 – 75 degrees and a relative humidity of 35%- 55% prior to delivery, during, and after installation of the flooring.
If HVAC is not possible at time of installation the environmental conditions must be at or near normal living conditions between 60 – 80 degrees and at the average yearly relative humidity for the area.

It is the Installer/Owner responsibility to ensure that the conditions are acceptable prior to the installation of the hardwood floors. The manufacturer declines any and all problems with the hardwood flooring that are related to or attributed to improper jobsite conditions.

Recommended Subloor Surfaces Concrete Subloor Guidelines
Concrete slabs should be of high compressive strength and constructed to prevent groundwater from permeating the concrete. Engineered hardwood flooring can be installed on, above, or below-grade. In addition, it can be installed over above-ground, suspended concrete floors. The suspended concrete must be a minimum of 1 1/2 inches thick and must be structurally sound. The exception to this is lightweight concrete (which usually contains high amounts of gypsum) having a density of 100 pounds or less per cubic foot. Test for lightweight concrete by using a nail to scratch the surface of the concrete. If the concrete crumbles or turns to powder, it is not sound and you should NOT install the hardwood flooring. Use the floating installation method (5 ply products 3” or wider) only for lightweight concrete subfloors.

Wood Subloors Guidelines
Subfloor panels should conform to U.S. Voluntary Product Standard PS1-07, Construction and Industrial Plywood and/or US Voluntary PS 2-04 and/or Canadian performance standard CAN/CSA 0325.0-92 Construction Sheathing. Other CSA standards also apply.
Acceptable Panel Subloors: Truss/joist spacing will determine the minimum acceptable thickness of the panel sublooring.

On truss/joist spacing of 16” o/c or less the industry standard for single panel subflooring is minimum 5/8” 19/32”, 15.1 mm) CD Exposure 1 subfloor panels, 4x8 sheets. On truss/joist spacing of more than 16”, up to 19.2” (488mm) o/c, the standard is nominal ¾” (23/32”, 18.3 mm) T&G CD Exposure 1 Plywood subfloor panels, (Exposure 1) or nominal ¾” 23/32”, (18.3mm) OSB Exposure 1 subfloor panels, 4’x8’ sheets, glued and mechanically fastened.
Truss/joist systems spaced over more than 19.2” (488mm) o/c up to a maximum of 24” (610mm) require minimum 7/8” T&G CD Exposure 1 Plywood subfloor panels, (Exposure 1), or minimum 7/8” OSB Exposure 1 subfloor panels, 4’x8’ sheets glued and mechanically fastened – or two layers of subflooring or brace between the truss/joist in accordance with the truss/joist manufacturer’s recommendations and with local building codes. Some truss/joist systems cannot be cross-braced and still maintain stability.

For existing wood floors install new flooring at right angles to the existing flooring.
Do not glue, staple, or nail down hardwood flooring over particle board, floating application is acceptable (products 3” or wider). Do not install over existing glue down hardwood floors.

Additional tools & material needed:

WARNING! DO NOT SAND, DRY SWEEP, DRY SCRAPE, DRILL, SAW, BEADBLAST OR MECHANICALLY CHIP OR PULVERIZE EXISTING RESILIENT FLOORING, BACKING, LINING FELT, ASPHALTIC “CUTBACK” ADHESIVES OR OTHER ADHESIVES.
These products may contain either asbestos fibers and/or crystalline silica. Avoid creating dust. Inhalation of such dust is a cancer and respiratory tract hazard. Smoking by individuals exposed to asbestos fibers greatly increases the risk of serious bodily harm.
Unless positively certain that the product is a nonasbestos-containing material, you must presume it contains asbestos. Regulations may require that the material be tested to determine asbestos content and may govern the removal and disposal of material.
See current edition of the Resilient Floor Covering Institute (RFCI) publication Recommended Work Practices for Removal of Resilient Floor Coverings for detailed information and instructions on removing all resilient covering structures. For current information go to www.rfci.com
Ceramic tile and terrazzo: All wax and sealers must be removed with an appropriate cleaner/stripper. Ceramic tile and terrazzo should be abraded to allow for proper adhesion. Check for loose tiles by tapping and re-adhere. Fill grout lines with a cementitious latex fortified leveling compound.
Resilient tile, resilient sheet vinyl: Material must be full spread and secured to the subfloor. Do not install over perimeter glued floors. Do not install over more than one layer that exceeds 1/8” in thickness.
Nail/ Staple Down Only - If old flooring is unsuitable to install new flooring then overlay with new underlayment. Test to conclude that the staples/ cleats are able to properly penetrate and secure the flooring to the subfloor.
Glue Down Only – Do not install over more than one layer that exceeds 1/8” in thickness. Clean flooring with an appropriate cleaner and allow to thoroughly dry. If necessary degloss the floor using an abrasive pad to enhance the bonding of the adhesive, if wax or other coatings are present, completely remove the material with a quality stripper, rinse the floor and allow to dry. Always check for proper adhesion bond prior to installing.
CAUTION: DO NOT SAND any existing resilient tile, sheet vinyl flooring, or flooring felt as they may contain asbestos fibers that are not readily identifiable. Inhalation of asbestos dust can cause serious bodily harm. Check local, state, and federal laws for handling hazardous material before attempting the removal of these floors.
Acoustic Cork Underlayment: (Glue Down Only) – Install the cork underlayment according to the manufacturer’s instructions. The cork underlayment must be fully adhered to the subfloor. The cork underlayment should be of pure granulated cork combined with a polyurethane binder with a minimum density of 11.4 lbs. per cubic foot and not to exceed 13 lbs. per cubic foot.
PRE INSTALLATION / JOB PREPARATION
Inspect the Flooring – Inspect material for color, finish, milling, and grade. Hold out pieces that may not be acceptable once installed. PLEASE NOTE: We do not accept responsibility for any costs incurred when plank(s) with visible defects have been permanently installed.
Undercut Door Casings - Undercut all door casings 1/16" higher than the thickness of the flooring being installed. To do this, use a scrap piece of flooring as a guide. Lay it on the substrate and cut the casing with a handsaw or use a power jamb saw set at the correct height.
Blending of Cartons - To achieve a uniform appearance across the entire floor, we highly recommend that you open and work from several cartons at a time and dry-lay the flooring, mixing the planks from several cartons. This will allow you to blend the planks for maximum aesthetic appearance. Make certain the room is well lit to ensure color is consistent and that any visual defects can be seen and removed.
Match Transition Moldings: For best appearances blend all transitions and moldings to planks that have similar color and graining. Set them aside for use as needed.
Layout of Flooring: “Racking the Floor” is essential to achieve a random appearance. Start by either using random-length planks found in the carton or by cutting four or five planks in random lengths, differing by at least six inches. As you continue working across the floor try to maintain a six-inch minimum between end joints. Randomly install different lengths to avoid

a patterned appearance. Never waste materials; the end cuts from starter rows should be used at the opposite side of the room to complete rows or used to start the next row.
Expansion space: Expansion space around the perimeter is required and should be equal to the thickness of the flooring material. For floating installation the minimum is ½” regardless of the thickness of the material. For commercial installations use a minimum of ½” expansion.
Glue Down Installation Guidelines
NOTE: REFER TO THE ADHESIVE LABEL FOR PROPER TROWEL REQUIRED, SPREAD RATES AND INSTALLATION APPLICATION INFORMATION!
Before you begin using the following instructions, please refer to the Pre-Installation Job Prep information above. Getting Started
Select a starter wall. An outside wall is best: it's most likely to be straight and square with the room. Measure out from this wall, at each end, the width of two planks
including the tongue plus the space needed (3/8” or 1/2”) for expansion. Snap a chalk line from these points, parallel to that wall.
Prior to installing the flooring, secure a straight edge inside the chalk line to act as a guide and to prevent the row of planks from shifting during installation. The straightedge could be a straight piece of lumber or piece of flooring. Alternatively, the first row can be face-nailed with finishing nails into the wood subfloor or sprig nailed into a concrete subfloor.


Spreading the Adhesive
Using the proper trowel, hold the trowel at a 45° angle to ensure proper spread rate of adhesive. Apply pressure to allow the trowel to leave ridges of adhesive on the substrate with little adhesive left between the ridges. This will help to achieve the proper spread rate of the adhesive. Temperature and air flow across the adhesive can have an effect on the open time of the adhesive. 3X (or urethanes) will have a longer open time in areas of low humidity and will have a shorter open time in areas of high humidity. (See Adhesive label for further information).

Installing The Floor
Spread adhesive from the chalk line/straightedge out to approximately the width of two planks. Install the first row of starter planks along the chalk line/straightedge and secure into position with the tongue facing the starter wall.
NOTE: Proper alignment is critical. Misaligned starter rows can cause side and end gaps to appear in proceeding rows of flooring. When you have the starter rows complete, you can begin the next row.
When you are certain the first two starter rows are straight and secure, spread adhesive 2 to 3 feet wide across the length of the room. As a general rule, never spread more adhesive than can be covered in 30 to 45 minutes. If the adhesive has skinned over remove dried adhesive and trowel new adhesive.
Continue to install planks and push them into place. Place the tongue of the board into the grooves of installed boards and press into the adhesive. As you continue working across the floor try to maintain a six-inch minimum space between end joints. Randomly install different lengths to avoid a patterned appearance.
NOTE: Never strike a rubber mallet or hammer directly on the flooring to engage the tongue-and-groove. This practice can damage the flooring and/or the finish. Remove the adhesive from the surface of the installed flooring as you work – this will help to save time. A damp rag with water or mineral spirits will remove adhesive. Frequently change towels to avoid leaving a haze on the flooring surface. DO NOT use water to remove Urethane adhesives from the finish.
As you approach the end wall it may be necessary to cut the width of the last row – be sure to allow for the expansion space along the end wall. Once the final cuts are made set planks into place.
After the floor is complete remove the straight edge and glue down the first two boards.
Restrict foot traffic for a minimum of 6-8 hours and wait 24 hours before permitting moving of furniture onto the floor. Clean any wet adhesive from the flooring with a lightly dampened clean cloth. If the adhesive has dried, use mineral spirits on a clean cloth. For Urethane adhesive use the recommended urethane adhesive remover.
Roll and cross roll floor with a 100-150 lbs. (45-70 kg) roller at the end of the installation to ensure proper transfer of adhesive.

Final Inspection: After the floor has been cleaned, inspect the floor for nicks, scratches, gaps or planks that may have moved during installation, as well as any other imperfections that need attention. Touch up nicks and scratches with touch-up products. In typical climates, the new floor can accept foot traffic within 24 hours. In areas where additional curing time is required, more time may be needed.
Nail or Staple Down Installation Guidelines Additional Tools and Material Needed:
Drill
Air Hose
15 lb. Roofers Felt Tapping Block
In-line Air Regulator Compressor
Pneumatic Nailer / Stapler
Before you begin using the following instructions, please refer to the Pre-Installation Job Prep information above.

NOTE: Our products are not warranted against squeaking, popping or crackling when using staple-down or nail-down installation methods. Some squeaking, popping or crackling is normal and possible when using staple-down or nail-down installation methods. These symptoms may be aggravated in arid areas or during dry conditions.
Glue Assist - For products greater than 5” in width, it is recommended to use a combination glue down assist when using mechanical fasteners. Apply a urethane based wood flooring adhesive to the subfloor prior to installing the planks. Follow the standard fastener schedule. *This installation method doesn’t require the use of a traditional vapor retarder, which enables the glue to adhere to the subloor rather than the paper.
Set Up and Use of Pneumatic Staplers and Nailers
Minor occasional noises within the flooring are inherent to all staple/ nail-down installations and can change as environmental changes occur. This is not a manufacturing defect and is therefore not covered under our warranties (see warranty brochure for complete warranty coverage). You can help reduce squeaking, popping, and crackling by being sure that the subfloor is structurally sound, does not have any loose decking or joists, and is swept clean prior to installation. You should also be sure that your stapler or nailer is setting the fastener properly, not damaging the planks, and that you are using the correct nailing schedule.
When used improperly, staples or cleats can damage wood flooring. If the tool is not adjusted properly the staples/ cleats may not be positioned at the proper angle and cause blistering, peaking, squeaking, or crackling of the floor. Some models may require the use of an adapter to adjust for proper thickness. Test the tool on a piece of scrap material first - set the stapler/ nailer flush on the tongue side of the plank and install a staple/ cleat. Should the staple/ cleat penetrate too deeply reduce the air pressure; if the staple/ cleat is not deep enough then increase the air pressure using an in-line regulator. The crown of the staple/ cleat should sit flush within the nail pocket to prevent damage to the flooring and to reduce squeaking. The flooring manufacturer is not responsible for damage caused by the mechanical fasteners.

IMPORTANT NOTE: Use only 18 gauge cleat or staples.

For 3/8” thick products the minimum length staple is 1” For 1/2” thick products the minimum length staple is 1 ¼”
For 9/16” thick products the minimum length staple is 1 ½”.
Read and follow the manufacturer's instructions for complete set-up and operation of equipment. Getting Started
After the subfloor has been properly cleaned and prepped cover the subfloor with 15lb. asphalt felt paper. This material will help to keep the floor clean and help to
retard moisture from below (there is no complete moisture barrier system for staple or nail-down applications).
Select a starter wall. An outside wall is best: it's most likely to be straight and square with the room. Measure out from this wall, at each end, the overall width of the plank (board width + tongue + the space needed (3/8” or ½”) for expansion).
Snap a chalk line from these points, parallel to that wall.
Install the first row of starter planks along the chalk line/straightedge and secure into position with the tongue facing away from the starter wall (toward you). Drill pilot holes through the face of the plank every 6” (in the dark grain); approximately 1” from the back edge of the board and secure planks with 1” finishing nails.
Countersink nails and fill with appropriate colored wood filler – remove excess filler from surface.
Blind nail at a 45° angle through the tongue 1”-2” from the end joints and every 6” in between along the length of the starter boards (Predrill holes to make this easier). Depending on the width of the flooring it may be necessary to do this for the first few rows prior to using a pneumatic stapler/nailer.
NOTE: Proper alignment is critical. Misaligned starter rows can cause side and end gaps to appear in proceeding rows of flooring.
Installing the Floor
Continue to install the flooring making sure to nail/staple 1”-2” from the ends and every 3”-4” thereafter. Make certain the tool is adjusted properly to ensure that the fastener is at the proper angle and is flush within the nail pocket. As you continue working across the floor try to maintain a six-inch minimum space between end joints. Randomly install different lengths to avoid a patterned appearance.
If needed use a tapping block to help engage the boards together until the tongue-and-groove is flush and tight and no gaps are present between adjacent planks. NOTE: Never use a rubber mallet or hammer directly on the flooring to engage the tongue-and-groove. This can damage the flooring and/or finish.
As you approach the end wall it may be necessary to cut the width of the last row – be sure to allow for the expansion along the end wall. Once the final cuts are made set planks into place.
The last few rows will need to be fastened by hand. To fasten the final planks into place, you must either manually blind nail and/or face-nail through the surface on the final planks. Drill pilot holes at a 45-degree angle to the floor and blind nail using l” finishing nails. Alternatively, drill pilot holes in the face every 6” (try to drill holes in darker portion of the wood) and install with 1” finishing nails. Countersink nails and fill with appropriate colored wood filler – remove excess filler from surface with a clean rag and proper cleaner.

Floating Floor Installation Guidelines
(5 Ply Products 3/8” & ½” thick, 3” or wider only) Additional tools & material needed:

Before you begin using the following instructions, please refer to the Pre-Installation Job Prep information above.

6 Mil Polyethylene not required over a vinyl, wood, or a wood product sub floor. 6 Mil Polyethylene required over concrete type subfloors – on grade or below grade. Do not install over carpet.
If installing over vinyl, ensure that the vinyl is secure to the sub floor. Do not install over perimeter glued vinyl. If installing over an existing wood floor, install the flooring at right angles to the wood floor.
Secure creaking and loose floorboards with screws. Do not install over wood flooring glued to a concrete sub floor.
½” of expansion space required at all vertical surfaces.
Note: Larger rooms require additional expansion space. Add 1/16” to the width of the expansion space for every 3’ the room extends beyond 25’. Dimensions exceeding 40’in length or width – it is recommended to use a T-Molding for proper expansion.
Getting Started
Remove all doors and shoe moldings. Undercut all door casings 1/16” higher than the thickness of the flooring and underlayment to be installed. Place a scrap piece of plank and a sheet of underlayment against the door casing to act as a guide and cut the door casing with a hand saw or power jamb saw set to the correct height.
After determining the direction to run the planks, measure the width of the room (the dimension perpendicular to the direction of the flooring). The last row of the flooring should be no less than 1 ½” wide; if it is less, cut the width of the starter row to avoid a narrow last row.
Select a starter wall. An outside wall is best: it's most likely to be straight and square with the room. Measure out from the wall, at each end, the overall width of the plank plus ½” for expansion. If the first row requires ripping then measure from the wall the width of the ripped board plus ½” for expansion.
Snap a chalk line using a (brightly colored chalk) from these points. Install Underlayment: Unroll the 6 mil. Poly sheeting overlapping edges 4” and seal seams with clear plastic tape. Allow the poly to run 2” up the wall and trim back after installation of flooring. Install 1/8” foam underlayment.
Note: Use of a loating loor 2 in 1 underlayment may be used. Follow manufacturer’s instructions for application installing the 2 in 1 underlayment. Prior to installing the flooring, secure a straight edge (starter board) inside the chalk line to act as a guide and to prevent the row of planks from shifting during installation. The straightedge could be a straight piece of lumber or piece of flooring. This is temporary and will be replaced as the floor is completed.
Installing the Floor Insert spacers at walls to maintain the expansion space between the flooring and the wall.
Before starting to glue planks, dry lay the first two rows of flooring. Working from right to left, install planks so that the groove faces the straight edge (starter board). When reaching the end of the first row, cut the plank as necessary to fit. On the first 4 rows stagger end joints a minimum of 16” and then 8” thereafter. Use the remainder of the plank from the first row to start the second row. If the piece is less than 8” long, cut a new plank in half and use that piece to start the second row.
Lay the remainder of the planks in the second row. Make sure that the rows are straight and no gapping exists on the sides or ends. Once you have dry laid the first two rows, remove all the planks in order. You are ready to begin.
Begin gluing the boards; Run a continuous bead of adhesive along the groove of the short side (width) and the plank’s side groove (length). Proper alignment is critical. Misaligned starter rows can cause side and end gaps to appear in proceeding rows of flooring.
Install first row of planks with groove facing the straight edge. Work from right to left. Complete the first row. Make sure there are no gaps between the boards. Use a tapping block if need to close the boards together. Immediately wipe away any excessive adhesive with a clean, slightly dampened cloth.
CAUTION: Adhesive that is allowed to dry on the finish surface can be difficult to remove and may leave a haze. At the end wall use an end pry bar, if needed, to pull the ends of the planks tight.
Continue to install the floor working right to left, repeating the process until the completion of the floor. Continue to use the spacers on all vertical surfaces to maintain the ½” expansion.
DO NOT USE laminate straps as they may damage the flooring The last row will most likely require cutting to width but it should be no less than 1 ½” wide. To do this, lay the plank face up on top of the last full row installed. Trace the wall contour on the last plank using a scrap piece of plank and a pencil.
Install cut planks and pull into place with a pry bar. Install spacing wedges between planks and wall.
Remove the straight edge (starter row) and install the last row using the pry bar. Allow floor to dry for a minimum of 12 hours before removing all spacing wedges and allowing foot traffic.
Install trim and moldings the following day.
Radiant Heated Subloors
Refer to Website or Sample board to conirm as an approved product. Non Approved products are not warranted for use over Radiant Heat.
Prior to installation of looring over radiant heat system it is important that the guidelines are followed in strict accordance. Failure to follow the guidelines may produce unsatisfactory results.
Floating installation method only, direct glue down is NOT recommended. Sub loor must be lat to 3/16” in 10’ or 1/8” in 6’
Prior to installation moisture testing must be conducted and documented per ASTM test method 1869-89 for concrete or using a pin type meter for wood sub loors.

The moisture content for concrete sub loors registered after a calcium chloride test must not be greater than 2 pounds per 1000 square feet of area. If it exceeds these limits, DO NOT install the looring.
Relative humidity of the jobsite must be maintained between 35-55% relative humidity. Use of humidification system may be required to maintain the proper humidity level. Failure to maintain proper humidity level can result in excessive dryness of looring.
It is highly recommended that the radiant heat system be designed specifically to accept a wood loor. Use of an in loor temperature sensor as well as a separate thermostat for the individual room is required.
An outdoor temperature sensor should be used to adjust water temperature according to anticipated heat loss.

Jobsite Requirements
Prior to installation of flooring the radiant system must be installed per manufacturer’s instructions. Before installation of flooring material the follow conditions are required:

Moisture content of concrete must not exceed 2.0 lbs. per CaCl test method (ASTM1869-89) Wood sub floors not to exceed 12% and be within 4% of the wood flooring.
Concrete must be allowed to properly cure and dry a minimum of 4 weeks prior to operation of radiant heat system Operation of radiant heat system should be set to run at 2/3 maximum output for a minimum of 2 weeks prior to installation of flooring to further allow moisture from concrete to dissipate and reach a final moisture content. This must be done in both heating and non-heating seasons.
Prior to installation (4 days) reduce to a temperature of 65°.
Floating Installation - Install flooring according to floating floor installation guidelines. Use of a 2 in 1 underlayment is required. When gluing planks run a continuous bead of adhesive in the groove on both the end and length of the board.
Remove any excess glue that squeezes out onto surface of the planks with a clean damp rag. Change rags and water periodically to avoid leaving a haze on surface.

After Installation & Seasonal Operation

48 hours after completion of installation, slowly raise temperature of the heating system to its preferred operating level over a period of 5 days. Do not allow the surface temperature to exceed 80°
Humidity level must be maintained between 35%-55% R.H. Seasonal gapping should be expected.
Surface checking can be expected if the proper humidity level is not properly maintained between 35-55% R. H. or if the floor’s surface temperature exceeds 80°.

Completing the Job – All Installations

Sweep or vacuum floor
Clean the floor with proper hardwood floor cleaner
Install transition pieces -i.e. – thresholds, t-moldings, base boards and quarter round. Nail moldings to wall, not the floor. Inspect final floor for nicks and or minor gaps – fill with appropriate color wood putty.
Unused material should be left with owner and stored in a dry place in case of future repairs are needed. Use plywood or hardboard when moving heavy appliances or furniture across floor.
FLOOR PROTECTION DURING CONSTRUCTION
After installation, if you choose to protectively cover the floor, cover the floor completely, since some species are light- sensitive and uncovered areas may change color. Use a covering material with a vapor permeance (perm rating) of 1 perm or more (tested in accordance with ASTM E-96) to avoid trapping moisture/vapor on or within the floor. Any covering should be taped, using a lowadhesion tape, to base or shoe moldings. Avoid taping to finished flooring. When taping paper or sheets together, tape them to each other, not to the floor.
MOLDINGS HELP YOU MAKE EASY TRANSITIONS
T-Moldings: Used to create a transition between floor coverings of similar heights or to cover an expansion gap.
Stair Nosing: Used in conjunction with flooring installed on steps or provide a finished edge. Secure by gluing and nailing/ screwing down into place. Predrill holes to avoid splitting.
Reducer Strips: Used to transition floor coverings of differing heights- wood floor to vinyl, vinyl composition tile, or low-pile carpet. Can also be used to border a fireplace.
Thresholds: Used to transition floor coverings or to create a break between floor coverings – wood to carpet, can be used as a trim molding around fireplaces or sliding glass doors.
Shoe Base Moldings: Used to cover the expansion space between the floor and vertical surfaces. Can be used as a substitute for Quarter Round moldings when space is a limitation.
Quarter Round Moldings: Used to cover the expansion space between the Wall Base and your hardwood floor. You can also use them to make smooth transitions between the floor and cabinetry.
Wall Base Moldings: Can be stained and finished to the color of the flooring to be used an alternative to painted baseboards.

RESIDENTIAL HARDWOOD LIMITED WARRANTY
Shaw Industries, Inc. (“the Company”) warrants its flooring products under this Limited Residential Warranty when used in the proper fit for use indoor residential applications. The warranty belongs to you, the original end- use purchaser. This warranty begins when you purchase the flooring and extends for the limited warranty period stated on the product specification. The basis of any warranty related claim is the original Company invoice or that of an authorized Company dealer. The flooring must be installed in accordance with the Company’s installation guidelines and specifications. The product must be maintained in accordance with the Company’s maintenance recommendations and such maintenance continues throughout the duration of the original installation. Damage resulting from a failure to follow installation and cleaning/maintenance guidelines will not be covered under this warranty. Installation guidelines, specifications, and product care recommendations can be obtained from your dealer. For additional information, please visit Shawfloors.com

W H AT T H E WARRAN T Y C OVE RS
Manufacturing Defects – The Company warrants that the flooring product will be free from manufacturing defects during the period of this warranty.

Wear – The Company warrants the finish will not wear through or peel off the hardwood flooring under normal use during the period of this warranty. Normal use is defined as light to moderate foot traffic. NOTE that this limited warranty extends only for defects that cover at least 70% of the surface area of the installed flooring. NOTE: Gloss Reduction, Scratches and Dents in the finish are not considered surface wear and are not covered under this warranty.

Important: All wood-based products are hygroscopic (they will react to moisture) and as a result will expand or contract accordingly. All sources of subfloor moisture must be remedied prior to installation. Any construction dampness must be remedied prior to installation. If excessive moisture is allowed to accumulate in buildings, subfloors, or on building materials, mold (and/or) mildew growth can occur - particularly if the moisture problem remains undiscovered or unaddressed. In addition, such excessive moisture levels can cause the ends and/or sides of the product to lift/flare due to the vapor pressure from underneath. Such damage from excessive moisture levels (as outlined in the installation instructions document) is not covered by this warranty. All sources of subfloor moisture should be remedied prior to installation.

W H AT C ON DI T I ON S APPLY
Examples of damage not covered by this warranty would include, but not limited to damage from the following:

Gouging from sharp objects such as but not limited to knives or scissors.

Broken or improperly maintained caster wheels with sharp edges that result in gouging or scratching.

Broken or improperly maintained furniture, table, or chair feet with sharp or damaged edges / surfaces that result in gouging or scratching.

Severs impact from falling objects.

Scratching, gouging, or damage from heavy appliance movement or heavy furniture movement.

Debris tracked in on shoes from the outside, such as, but not limited to, rocks, that result in gouging or scratching.
Below are recommended precautions that are commonly and effectively taken to greatly reduce the possibility


1

of causing damage to flooring:

Always utilize protective coverings / pads / felt on the feet of furniture, chairs, and tables. Maintain and replace frequently to reduce propensity for damage.

Chairs / furniture with casters should be fitted with soft rubber wheels, an adequate protective mat or protective caster cups placed under the furniture.

Walk off mats at every outside entrance should be utilized to limit the floors exposure to abrasive debris.

For jobsite and floor preparation conditions, see product specific installation guidelines. Any moisture related testing (i.e. relative humidity, pH, and calcium chloride) is the responsibility of the installer.

This limited warranty does not cover the following: damage caused by improper installation and / or maintenance; differences in color between products and samples or photographs; problems arising from excessive moisture, alkali or water pressure from the subfloor; indentation from improper loading including heavy static loads, spiked shoes such as high heels without rubber heel tips, cleats, skates or toys that cause gauging or scratching, rolling loads, broken chairs or furniture that results in scratching, gouging, discoloration, including but not limited to discoloration from U.V. light and heat sources, gouging from exclusions listed above, changes in shading, texture and/or gloss during use, damage caused by chemically reactive material, dye, mold, stains, spillage, burns, gouges, scratching, indentations, floods, accidents, abuse or any harsh scouring pads while buffing, and/or damage due to thermal heat sources.

This limited warranty excludes all casualty events involving water coming in contact with your floor and failures normally covered by homeowners' insurance including, but not limited to, damages caused by flooding or standing water from leaky pipes, faucets, or household appliances. Also excluded are damages caused by flooding or standing water from hydrostatic pressure or other casualty events.

Shaw products are not warranted against any noise such as: squeaking, popping, or crackling. Some squeaking, popping, or crackling is possible when installed using floated methods, or glued methods, or fastened methods.

Wood is a natural product containing natural variations in color, tone, and graining. Shaw cannot warrant against natural variations in color or any other variations, such as mineral streaks, small knots, and grain variations from plank to plank. Nor can we warrant against natural variations or gloss level between samples / models and installed flooring. Any sample or model shown or used by your seller is for demonstrative purposes only, and such sample or model DOES NOT create a warranty of any kind that the goods you purchased shall conform thereto. Any warranties based on any such sample or models are specifically disclaimed.

Improper Installation: The floor must be installed according to Shaw's installation guidelines. Damage caused by improper storage, handling, or installation methods are not covered by these warranties. Improper preparation of, or deficiencies in, the subfloor / floor joist assembly, including but not limited to excessive floor deflection, uneven or irregular subfloor surface (particularly at joints) or voids in the subfloor, are not covered under these warranties. Check to be certain that the subfloor is within specs.

Improper Care and Maintenance: The floor must be maintained according to Shaw's Care & Maintenance guidelines. Damage caused by improper maintenance is not covered by these warranties. Water damage resulting from improper installation or flooding caused by natural disaster, plumbing failures, etc... are not warranted. This limited warranty does not apply to moisture damage by events beyond everyday household spills, including, but not limited to flooding, standing water allowed remaining on floor, appliance leaks, leaking plumbing, or any source of continuous, repetitive or long-term water exposure This limited warranty does not apply to damage caused by subfloor moisture. Any moisture or water coming from underneath the floor is not covered under warranty. This limited warranty does not apply to improperly installed flooring. This warranty

2

does not apply if flooring is installed in areas where moisture repeatedly occurs or if flooring is installed or maintained contrary to the guidelines set forth in the installation, care and maintenance, and warranty documents including but not limited to improper subfloors, or areas exposed to excessive or continuous, repetitive, or long-term topical moisture, structural and manufacturing requirements. Defects or failures of other manufacturers' products at the subfloor assembly, including but not limited to subfloor material, fasteners, patching compound, adhesives, and other floor coverings are not covered by these limited warranties. In no event shall Shaw be held responsible for any damage caused to your hardwood flooring by other manufacturers' products. Other items not covered under the limited warranties include construction traffic, abuse to the surface of the flooring; use of non-recommended nailers, staplers, or adhesives; end gapping due to mastic memory or improper seating of planks during installation; squeaking, popping, or crackling by any cause. (Popping sounds caused by depressions in the subfloor ARE NOT covered under these limited warranties.) Cabinets and other built-in appliances should be installed PRIOR to the installation of the hardwood flooring.
They should NOT be installed on top of the hardwood flooring. Pre-finished hardwood floors should be installed at the same time as carpets and AFTER finishing the walls to prevent damage from paint, dry wall dust, wallpaper adhesives, and other materials.

Damage to the flooring such as dents, scratches, or dulling of the finish are NOT covered. Wet or damp-mopping your floor with water or other substances are not covered by these limited warranties. In addition, the following are NOT covered under these limited warranties: use of hard floor cleaning machines; use of non- recommended maintenance and floor-care products, including but not limited to oil soaps, liquid or paste wax products, other household cleaners that contain lemon, orange, or tung oils; neglect or abuse of the hardwood floor, including but not limited to not taking proper precautions to protect furniture legs and feet with
protective pads to reduce scratches and dents; not using dollies and protective plywood when moving heavy objects; furniture or appliances having dirty or improperly operating casters; spiked and/or damaged heels; pet claws and scratches; falling or dropped objects which can dent or fracture the flooring and finish; and dents or scratches in the flooring caused by furniture, appliances, casters or normal foot traffic.

Improper Environment: Shaw floors are not warranted against damage caused by man-made or natural disasters, including but not limited to leaking or broken plumbing, landscape watering/irrigation, fire, flood, earthquake, insect infestation, or standing water during or after construction. Shaw also does not warrant against: (1) moisture infiltration from side walls, through the subfloor or from any source; (2) normal wearing of the finish in high traffic areas, pivot points and seating areas; or (3) other extraordinary circumstances such as extreme low humidity (below 35%). In extreme low humidity conditions (below 35%), planks may shrink and or exhibit surface checking.

Seasonal Checking: Cracks or checks in the surface of planks due to low humidity, excessively high humidity, or dramatic fluctuations in humidity are inherent in all wood products and may affect your floor's finish. Checking is not covered under these Limited Warranties The use of a humidifier/dehumidifier may be necessary to maintain the proper humidity level between 35%-55%.

Recoating and Finish Alterations: Alterations to the finish or non- factory applied finishes (finishes applied by the owner or installer), including but not limited to refinishing or recoating, are NOT part of the Limited Warranty for residential finish wear stated above and therefore are NOT warranted by Shaw.

Natural Sunlight: The sun and its UV rays cause the aging of wood and therefore can cause the stain and/or wood to fade and / or darken and / or change color. This includes any showroom sample/models; therefore, fading or discoloration due to exposure to sunlight and its UV rays are not covered by these warranties.
Samples or models in the showroom may also fade and / or darken and / or change color, making an exact match to new flooring impossible. Custom finishing and staining of interior millwork and/or cabinets should be done from the actual floor to be installed, not a showroom sample, if a color and/or gloss match is desired.





3

W H AT I F YOU N E E D WARRAN T Y S E RVI C E
You, the original purchaser, will contact your authorized Company Dealer and/or Sales Representative for warranty or claim service. Please provide valid proof of purchase and a detailed description of the issue, along with photographs showing the concern. Samples of claimed issues should be submitted when available.

Dealers/Shaw Sales Representatives will file a claim via www.shawnow.com and submit the information you provided. A Shaw claims representative will thoroughly evaluate your claim. Claims contact information: Shaw Industries Financial Services, PO Box 2128, Dalton, GA 30722 - 1-800-446-9332 option 2.

W H AT W I LL S H AW DO
Replacement flooring will come from current running-line products comparable to the warranted product.

Within Two Years: Claims on defects of this product as covered by this warranty that are reported in writing within two years of purchase, Shaw will arrange a credit based on the original purchase of the product or replace the product. If professionally installed, reasonable labor costs are included.

After Year Two: Claims on defects of this product, as covered by this warranty, that are reported in writing after two years of purchase and within the specified warranty coverage term, Shaw will arrange a credit based on the original purchase of the product or replace the product. Labor costs are not included.

Should a defect covered under this warranty be found, the affected area will be repaired to conform to the warranty. If repair is not practical, the Company may, at its sole option, replace the affected flooring or refund the proportional purchase price for the affected area. Any additional costs incurred will be at the consumer’s expense.

NOTE: The warranty is not transferable. It extends only to the original end use purchaser. Shaw Industries, Inc. does not grant to any person or entity the authority to create for it any obligation or liability in connection with this product. Shaw Industries Inc. shall not be liable to the consumer or any other person or entity for any incidental, special or consequential damages, arising out of breach of this limited warranty or any implied limited warranty (excluding merchantability).

All implied warranties, including an implied warranty of merchantability or fitness for a particular purpose, are hereby limited to the duration of this limited warranty. Some states do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to the purchaser. This warranty gives the purchaser specific legal rights, such rights may vary from State to State.


















4

ANDERSON HARDWOOD MAINTENANCE
New hardwood floors represent a substantial flooring investment and with proper care the appearance and performance of your Shaw hardwood floor can be maintained over time.
A total care program consists of key areas:

Post Construction Maintenance Preventative Maintenance
Routine Maintenance
Spot and Spill Removal

POST CONSTRUCTION MAINTENANCE
Dry mop floor using a micro fiber mop pad or appropriate floor vacuum to remove dust particulate from the floor.
Spray neutral pH cleaner, such as Shaw TOTALCARE® Hard Surface Cleaner or Bona Wood Cleaner, onto the floor in manageable area (spray mist will dry quickly). Use a micro fiber wet mop pad to mop the floor with cleaner. If pad becomes dirty, be sure to replace the pad with a new micro fiber wet mop pad. Work floor in sections.
Always rinse the floor by spray misting water on a flat micro fiber mop pad meant for wet mopping (make sure there is no dripping water).
In the event where dry wall dust/construction dust is mopped with water only, a residue film will appear on the floor after drying. Use the process below to remove the film from the floor.
Process to remove construction residue or cloudy film from hardwood flooring

1. Dry mop floor to remove any construction dust or exterior soil tracked onto the flooring. Use micro fiber dry mop pad. If micro fiber dry mop pad gets dirty, replace pad with a clean pad.
2. Spray neutral pH cleaner, such as Shaw TOTALCARE® Hard Surface Cleaner or Bona Wood Floor Cleaner, onto the floor in manageable area (spray mist will dry quickly). Work floor in sections. For embossed or textured flooring, use a cylindrical brush scrubber, such as the Clark MA10 12E Scrubber and a neutral pH cleaner applied to the floor to remove the residue film.
3. Spray mist water on a microfiber mop pad meant for wet mopping so it is damp (make sure there is no dripping water). Mop the floor to remove any remaining residue from the flooring. When wet mop pad becomes dirty, be sure to replace the pad with a new micro fiber wet mop pad.
4. Repeat steps #2 and #3, if necessary.
When the hardwood flooring is cleaned properly, the floor will have the same visual as right out of the box!

PREVENTAIVE MAINTENANCE
• Always protect floors from direct exposure of sunlight that can cause the wood or stain to change colors. Warranties do not cover damage from UV exposure. Recommended humidity levels are between 35% R.H.- 55% R.H.
• Protect floors when moving heavy objects to prevent permanent scratches and tears. The use of Ram board or equivalent and heavy cardboard are examples of protective barriers.
• Use appropriate wide floor protectors under tables, chairs, and any other heavy home furnishing to avoid permanent damage. As a rule, the heavier the object, the wider the floor protector.

• Walk-off mats should be used at all entrances to absorb soil and moisture. The use of appropriate mats will help avoid scratches and damages to the floor. If mats are placed directly on top of the hardwood floors, use proper indoor mats. Mats that can trap moisture underneath have potential to cause possible discoloration. Latex and rubber backings should not be used.
• Use of Rug Pad - Use of Durogen or PVC rug pad when placing rugs over all hard surface flooring products.
• Area rugs are recommended in high traffic and pivot areas. Avoid shoes with spiked or damaged heels.
Also keep pets’ paws and nails cleaned and trimmed.

ROUTINE MAINTENANCE
• Daily removal of dirt and dust is important to prevent particles from abrading the floor’s surface.
Sweeping, dust mopping, and vacuuming are recommendations to remove soil particles that can result in scratches and worn appearances. Do not use vacuums with rotating beater bars on hard surfaces.
• Periodic cleaning will be necessary to help maintain the floor’s appearance. Always pre-vacuum or dust mop before any type of cleaning. Shaw TOTALCARE® Hard Surface Cleaner or appropriate hardwood floor cleaning agents (neutral pH cleaners) are recommended.
• Do not use abrasive cleaners or cleaning agents that leave dull residues on the surface of the floors.
Never wet mop the floor with water and do not allow excess cleaner to remain on the floor’s surface as this may permanently damage the wood.
• Steam cleaners are not recommended.
It is recommended to use a flat microfiber wet mop pad when mopping the floor using a neutral pH cleaner, such as Shaw TOTALCARE® Hard Surface Cleaner or Bona Wood Floor Cleaner. Do not use a mop and bucket system.
• Expedite drying with air movers or fans.
• Do not use oil soaps, liquid or paste wax products, or cleaners with citrus type oils, Tung oils, silicon or ammoniated products as well as 2 in 1 cleaners with polish additives. Problems from these type products can affect the floor which would not be considered in the warranty.

SPOT AND SPILL REMOVAL
• Remove wet spills promptly by blotting with white paper or cloth towels.
• Dried spots should be removed by Shaw TOTALCARE® Hard Surface Cleaner with gentle agitation from a clean towel or cloth. Always blot dry.
• Do not use detergents or abrasive cleaners since these products can result in a dull residue and appearance.
• Use rubbing alcohol (isopropyl alcohol) with a clean white cloth for spots requiring a solvent type cleaner that hardwood cleaning agents cannot remove.
