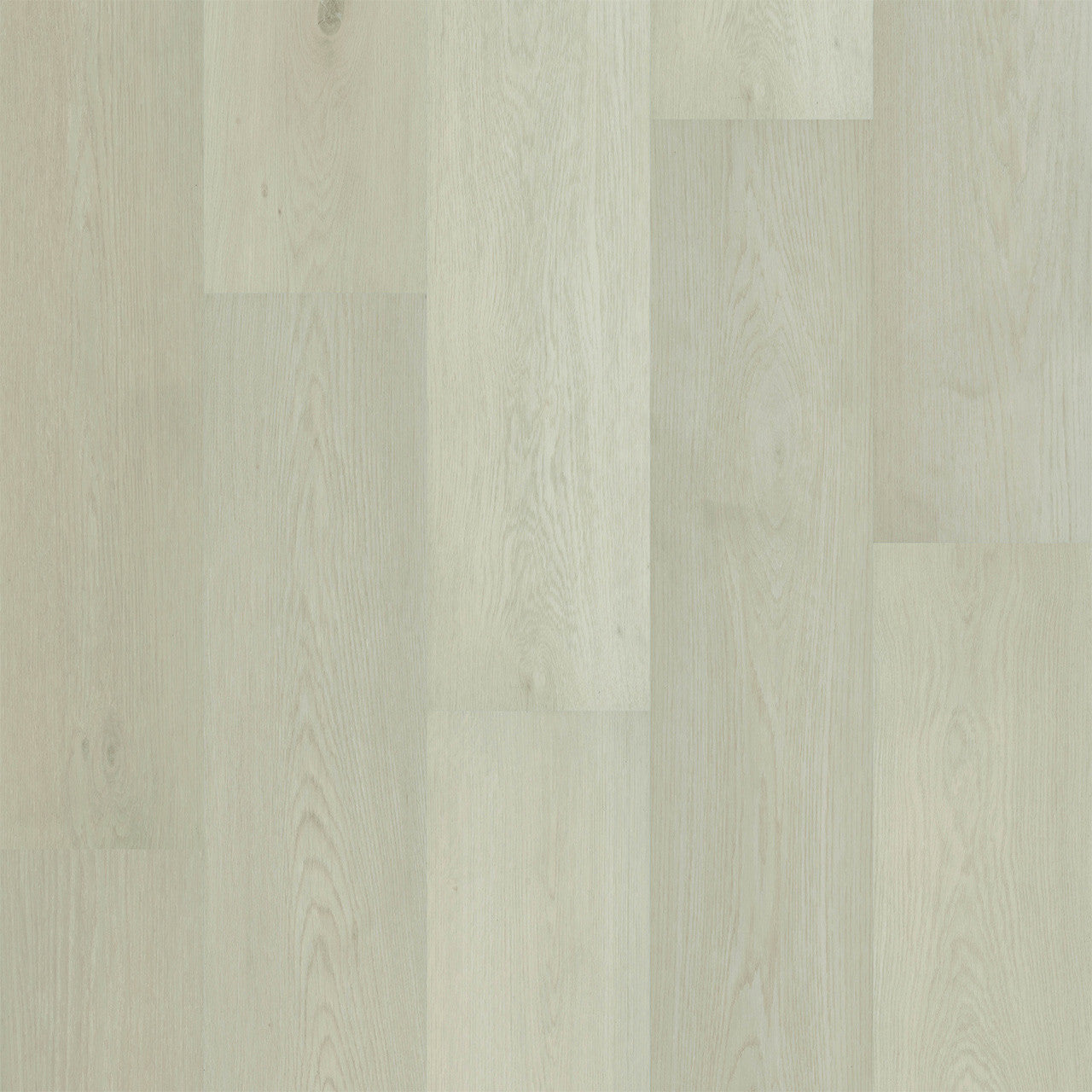

Seaside Villa PureGrain Endure Preference Vinyl Plank

Dimensions: 6 MM x 7" x 60" Wear Layer 20 mil
Construction: Rigid Core Plank - Attached Pad - Embossed In Register
Design: Engineered Luxury Vinyl
Coverage: 23.14/SQ.FT
Edge Style: Pressed Bevel
Finish: Ceramic Bead
Install Method: One2Click® Angle/Angle
Certification: Green Guard Gold - FloorScore
Warranty: Lifetime Residential - 10 year Commercial

End Cap
Quarter Round
Reducer
T Molding
Stair Nose

PureGrain High-Def® Digital Luxury Vinyl Tile Flooring
Angle/Angle Installation Instructions

Engineered Floors LLC® (“EF”) requires all vinyl flooring supplied by EF be installed according to our most current installation instructions to maintain full product warranty coverage. The most current installation documents and videos can be found online at www.engineeredfloors.com . Instructions on replacing damaged planks as well as maintenance and warranty documentation are also available online. The best practice is to have the flooring installed by professional installation
technicians. Keep the original sales receipt (proof of purchase), all moisture/relative humidity testing, and installers receipt for warranty purposes. EF requires that the flooring be maintained according to our most current care and maintenance guidelines. Please contact info@engineeredfloors.com or 866-706-9745 option 7 for
any additional questions not covered in this document.
GENERAL INFORMATION
• Acclimation of material prior to installation is recommended (24 hours)
but not required.
• The HVAC system should be operational and set between 55°F - 85°F
(18.3°C - 29.4°C) before, during and after the installation period. Keep
in mind a concrete floor can be up to 10° colder than the ambient
temperature.
• PureGrain High-Def can be installed on subfloors that are on, above, or
below grade.
• PureGrain High-Def is intended for indoor use only and is warranted as
floor covering only.
• PureGrain High-Def should only be installed after all the other trades
have finished and the job site has been cleared of any debris that could
damage a finished installation.
• Install cabinets and/or permanent ‘islands’ prior to installing flooring.
Do not install cabinets, islands and such on top of floating flooring.
• Do not install PureGrain High-Def in areas subject to frequent standing
water or in high moisture areas. This flooring is waterproof from topical
moisture, when installed properly, and secures the flooring on all four
sides. However, excessive moisture in the subfloor could promote
mold, mildew, and other moisture related issues by trapping moisture
emissions under the flooring, which may contribute to an unhealthy
indoor environment.
• PureGrain High-Def has an attached underlayment. Do not install over
an additional cushioned underlayment.
• Cartons should be stored horizontally on a flat and level surface with
the corners protected from damage. Do not store cartons on their
sides.
• When ordering flooring, order 5% more footage than the measured
space to receive flooring. Where multiple angles or obstacles exist,
more than 10-15% overage may be necessary.
• EF recommends the homeowner keep a minimum of one full carton for
future repair or replacement.
• Inspect all flooring. Confirm the product to be installed is the correct
style and color. Do not install flooring that is not the correct style and
color or that is from multiple production runs. Do not install damaged
or defective flooring. EF will not be liable where incorrect flooring,
damaged flooring, or flooring with visible defects have been installed.
• Heavy loads can pin the floating product to the substrate which may
prevent the product from expanding and contracting evenly, causing
side or end separation, peaking, or gapping.
MOISTURE BARRIER
• EF requires a 6-8 mil polyethylene vapor barrier or concrete moisture
sealer be used under our floating floors that are installed on concrete
that is on or below grade.
• The proper application and subfloor requirements of the moisture
sealer are the sole responsibility of the dealer/installer.
• EF will not be responsible for flooring failures due to subfloor moisture
issues when a moisture sealer has been applied incorrectly.
POLYETHYLENE VAPOR BARRIER INSTALLATION
• Begin at starting Wall. Roll out the poly parallel to the starting wall and
allow it to run up the wall 2”.
• Smooth out any creases or wrinkles.
• Roll out the next run and overlap the seam a minimum of 4”.
• Smooth out any creases or wrinkles.
• Use a tape of sufficient width to tape the seams together.
• Install the flooring over the poly taking care not to damage the poly.
• Note: To prevent a trip hazard, do not install the poly over the entire
subfloor. Roll the poly out one row at a time as needed.
TRANSITIONS
• The transitions for EF DLVT are color coordinating. The trim pieces will
be close in color and grain but will not be an exact match to the
flooring.
• Using the trim as a guide, installers will need to find the planks that
have a similar grain and color as the transition. These pieces will need
to be put in the area where they will be installed.
• The ¼” expansion gap must be maintained between the transition and
the flooring.
COTTAGES AND THREE SEASONS ROOMS
EF DLVT can be installed in fully enclosed 3 season environments such as
solariums, sunrooms, three season rooms, and seasonal cottages. Installation
in these environments should occur while HVAC is operational and set
between 65°F - 85°F (18.3°C - 29.4°C). These products can withstand ambient
temperature variations from -20°F (-29°C) to 176°F (80°C) when not
occupied. While the space is occupied, the ambient temperature must be
maintained between 55°F (13°C) and 100°F (38°C). See the Conditions and
Exclusions section of the PureGrain Warranty Guide.
GENERAL SUBFLOOR PREPARATION
• The subfloor must be clean, dry, structurally sound, firm, and secure.
• The subfloor must be flat within 3/16" per 10’ radius (4.7 mm per 3 m).
High areas should be ground, and low areas should be filled.
• All construction seams, expansion joints, low areas, grout lines, etc.
larger than 1/4” should be filled to level with the surrounding surface
using cementitious patching and leveling compounds that meet or
exceed maximum moisture level and pH requirements. Use of gypsum-
based patching and/or leveling compounds which contain Portland or
high alumina cement and meet or exceed the compressive strength of
3,000 psi are acceptable.
• The subfloor should be free of dust, debris, paint, varnish, wax, grease,
oils, curing agents, sealers, solvents, and other foreign matter. Any
adhesive residue should be reduced to a thin well-bonded residue.
• Never use solvents or citrus adhesive removers to remove old adhesive
residue. Solvent residue left in and on the subfloor may affect the new
floor covering.
• The final responsibility for determining if a subfloor is acceptable for
installation of the DLVT lies with the floorcovering installer
PO Box 2207, Dalton, GA 30721
hstechservice@engineeredfloors.com or 866-706-9745 Option 7
Page 2 of 3
WOODEN SUBFLOORS
• Do not install material over wood subfloors, dimensional lumber, or
plywood that lies directly over concrete. Refer to ASTM F1482 for panel
underlayment recommendations.
• Basements and crawl spaces should be dry. Crawl spaces must have a
minimum of 18′′ (46 cm) clearance from the ground to the underside of
the joists. The crawl space should have perimeter venting equal to a
minimum of 1.5% of the crawl space square footage. A vapor barrier of
6 mil (minimum) black polyethylene film is required to cover the entire
crawl space. Film seams must overlap 6′′ (15 cm) and must be sealed
with moisture resistant tape. Where necessary local regulations prevail.
• We do not require a 6-8 mil poly moisture barrier for wood subfloors.
The installation of a moisture barrier on wood subfloors will not void
the product warranty.
• Plywood, OSB, particleboard, chipboard, wafer board, etc. must be
structurally sound and must be installed following their manufacturer’s
recommendations. Local building codes may only establish minimum
requirements of the flooring system and may not provide adequate
rigidity and support for proper installation and performance. It should
have a smooth finish and be free from spring and deflection. If this
requirement is not met or known, a minimum of 1/4" (6.35 mm) APA
approved underlayment grade wood must be adhered to the existing
subfloor.
• All fastener indentations and joints should be level and smooth. Use an
appropriate patching compound as necessary.
• We do not recommend installing our DLVT over pressure treated or
fire-retardant treated plywood. An additional layer of 1/4" APA
approved plywood should be installed over these types of plywood.
CONCRETE SUBFLOORS (PORTLAND OR GYPSUM BASE)
• New concrete slabs must be dry and completely cured prior to
installation of flooring.
• Concrete should meet the guidelines of ASTM F 710 “Standard Practice
for Preparing Concrete Floors to Receive Resilient Flooring” (see
www.astm.org/standards/F710).
• Engineered Floors require that all concrete subfloors be tested for
moisture. The moisture vapor emission rate should not exceed 8 lbs.
/1000 sq. ft. per ASTM F1869, and the internal relative humidity should
not exceed 90% per ASTM F2170. Records of the testing locations and
results should be documented. Three internal relative humidity tests
should be conducted for areas up to 1000 sf and one additional test, for
each additional 1000 sf after the first 1000 sf.
• The pH level should be between 5 and 9.
• Do not install over concrete with a history of high moisture or
hydrostatic conditions. Excessive moisture in the subfloor could
promote mold, mildew, and other moisture related issues like the
trapping of moisture emissions under the flooring, which may
contribute to an unhealthy indoor environment. EF does not warrant
nor is responsible for damage to floor covering due to moisture related
issues.
• EF requires a moisture barrier be installed under our floating floors that
are installed on concrete that is on or below grade.
• All recommendations and guarantees as to the suitability and
performance of lightweight concrete under resilient flooring are the
responsibility of the lightweight concrete manufacturer. The installer of
the lightweight concrete product may be required to be authorized or
certified by the manufacturer. Correct on-site mixing ratios and
properly functioning pumping equipment are critical. Slump testing is
recommended.
• Lightweight aggregate concretes having dry densities greater than 90
lbs. per cubic foot may be acceptable under resilient flooring.
• Concrete slabs with heavy static and/or dynamic loads should be
designed with higher strengths and densities to support such loads.
EXISTING FLOORCOVERINGS
• PureGrain High-Def can be installed over most existing hard surface
flooring if it is clean, dry, flat, structurally sound and free from
deflection.
• Existing sheet vinyl flooring should not be cushioned and not exceed
one layer in thickness. Soft underlayment and soft substrates will
compromise the product's locking ability as well as diminish its
indentation resistance.
• This product can be installed over existing ceramic/porcelain tile
products with up to a 1/4” wide grout joint. If the grout joint width
exceeds 1/4”, a Portland based cementitious patching compound
should be used to fill the grout joint to make it smooth with the surface
of the tile.
• Properly cleanse any existing marble/terrazzo flooring using a
commercial degreasing/dewaxing solution. Rinse thoroughly then dry
thoroughly. Grind or abrade any highly polished or irregular surfaces.
• Do not install directly over hardwood/engineered hardwood floors. We
recommend installing 1/4” APA approved plywood over these types of
existing floors.
• Do not install over cushion-backed vinyl flooring, asphalt-based floors,
carpet and/or carpet pad, self-adhering plank or tile, laminate, other
floating flooring, or structurally- damaged concrete.
RADIANT-HEATED FLOORS
EF DLVT can be installed over embedded radiant-heated floors provided the
operating temperature never exceeds 85° F (29.4° C). The heating system can
be hydronic or an electric mat system. These systems are installed in
channels under the subfloor or embedded in concrete, thin set, or patching
compound. The heating components must have a minimum of 1/2”
separation from the flooring product. The radiant system should be in
operation for three weeks prior to installation of the flooring to reduce any
residual moisture in the subfloor. 48 hours prior to and during installation,
the system should be kept at 65 °F (18.3° C). Once the installation is
completed, the heat should be gradually increased in 5° (2.8°) increments per
day until the desired setting is reached. Where floor heat is present, be
mindful that loose rugs or carpets may function as heat insulators and raise
the temperature above the tolerated maximum surface temperature of 85° F
(29.4 C). Contact the manufacturer of the heating system for further
recommendations.
RECOMMENDED TOOLS AND MATERIALS
Tape Measure, framing square, utility knife, straight edge, spacers, chalk line,
embossing leveler/floor patch (if necessary), rubber mallet, tapping block,
tile cutter (optional), table saw, jigsaw
INSTALLATION – GENERAL
• Areas up to 2500 sq. ft. require a minimum of 1/4" (6.35 mm)
expansion space around the perimeter of the room and all permanent
vertical obstructions. Areas larger than 2500 sq. ft. require 1/2” (12.7
mm) perimeter expansion.
• Make certain that doors, moldings, etc. allow sufficient clearance above
the flooring.
• It is recommended that the flooring be installed running parallel to the
longest wall and into the light source when possible.
• When installing, work from several boxes at a time for best results and
overall appearance.
• Remove existing floor moldings (where applicable) and undercut
doorway moldings to the thickness of the subfloor.
• Cartons should be stored horizontally on a flat and level surface with
the corners protected from damage. Do not store cartons on their
sides.
• EF DLVT should never be nailed to the substrate.
• Planks can be cut across the width using a sharp utility knife and a
framing square. Score the surface of the plank with the knife and snap
the plank at the score line. A tile cutter or powered saw should be used
for cutting along the length.
PO Box 2207, Dalton, GA 30721
hstechservice@engineeredfloors.com or 866-706-9745 Option 7
Page 3 of 3
INSTALLATION – PROCEDURE
1. Carefully measure the room to determine the width of the last row of
flooring. If the width is less than 2" (50 mm) excluding the tongue, the
width of the first row will have to be cut to increase the last row to
more than 2”.
2. The tongue of the plank should face the starting wall. Make certain that
the first row (tongue side) is perfectly straight to ensure subsequent
rows properly align. Inspect the groove area and remove any debris
that may prevent proper assembly of planks.
3. The joints must be installed at an angle. Any other method will damage
the locking system
4. To lock the end joints together, insert the tongue into the groove at a
slight angle and rotate downward holding pressure to keep the joint
together. Continue installing planks to complete the first row.
5. Install the first plank of the next row by inserting the long edge at a
slight angle. Maintain pressure and rotate the plank downward to fully
engage the joint. Insert the end joint of the next plank, keeping it close
to the locking system on the long joint and rotate downward. Slightly
raise the plank and use a tapping block to fully engage the long joint.
6. Install adjoining rows one piece at a time. Holding the plank at a slight
angle, place it against the profile in the first row. Rotate the plank down
to secure the length joint assuring there are no gaps along the joint.
7. If there are any gaps, we recommend using a tapping block and rubber
mallet to lightly tap on the edge of the material. This will bring the
plank edges tight together.
8. To install the final row of planks, you will usually need to cut them. We
recommend the following: lay a panel on top of the last row installed.
Lay another plank against the edge of the wall. Mark the plank
underneath.
9. Continue working from left to right, row by row. Be sure to maintain
the expansion space around all walls and vertical objects. To maintain a
random appearance, remember to offset the end joints a minimum of
8" (20 cm).
10. If the panels can’t be angled to engage the joints (e.g. under a door
jamb or low fitted radiator) the installer will need to shave the raised
portion of the receiving edge off the installed piece by using a chisel or
a small block plane. Dry fit to make sure the piece fits. Run a bead of
tongue and groove adhesive on the modified groove of the installed
piece. Install the piece and use a few pieces of painter’s tape to hold
the plank in place until the adhesive has dried and cured. The curing
and setup times vary depending on the adhesive used.
FINISHING THE INSTALLATION
• After all planks have been installed, remove spacers from perimeter of
room.
• Installers can cover the gap between the bottom of the door jamb and
flooring with a silicone caulk. Make sure the caulk does not impede the
expansion space.
• Install quarter-round or baseboard molding. Molding should be of
sufficient size to cover the expansion space and should be fastened to
the wall, not to the flooring. Do not fasten any moldings through the
flooring.
• When moving heavy items, always carry them. Never push or pull
furniture or other heavy items over DLVT.
• Use floor protectors under the legs of furniture and chairs. Use chair
pads where concentrated roller traffic will occur.
• Installations in wet areas such as bathrooms should be caulked around
the perimeter and around the toilet flange using a silicone caulk that
remains flexible when dry to retard moisture from getting under the
flooring.
• Protect the flooring from subsequent projects using a non-adhering
temporary protective material such as Ram Board®.
• UV protective film, blinds, curtains, or shades must be used to assure
that DLVT products are protected from direct sunlight.
• Consult the PureGrain High-Def Care and Maintenance document for
complete cleaning and care.

LIFETIME RESIDENTIAL USE LIMITED WARRANTY
https://engineeredfloorsllc.app.box.com/s/h5wfctryc4tyj0wowmu4gfmjjqelvulj

DLVT Care and Maintenance

Engineered Floors® (“EF”) PureGrain High-Def DLVT is beautiful, scratch resistant, and durable. Even so, all floor coverings require care and
maintenance to look and perform their best. The type and frequency of traffic on your floor will determine the frequency of necessary maintenance. The design and even the color of the flooring will have some bearing on how much care may be necessary. Solid colored floors will
show scuffs, scratches, dirt, and general wear more than multi-colored and/or patterned floors. White or lighter colors will show staining more than darker colors. For this reason, floors with solid and/or light colors should receive special attention regarding preventative maintenance and the overall amount of care provided. Ultimately, the price of failing to clean and maintain flooring is much higher than the time and effort required to clean and maintain the flooring. Taking care of your floor not only increases your enjoyment level but also protects your investment.
PREVENTATIVE CARE
• Be careful when placing furniture and appliances on your flooring. Always carry heavy items. Never push or pull furniture or other heavy items
over DLVT.
• Check the condition of all the casters, rollers, legs, and bottoms of furniture before setting them on your flooring. Replace any worn casters or
rollers. Remove any protruding tacks, nails, or similar materials that may scratch the flooring. Remove any rust. Sand or otherwise smooth any
jagged or rough surfaces that will contact the flooring.
• Use heavy felt protectors under furniture. The heavier the item, the wider the ‘footprint’ should be to spread out the load.
• Protective pads are required where chairs on rollers will be present.
• Protect flooring by using mats outside and/or inside all entrances. Mats will collect tracked-in dirt, sand, pebbles, other particulates, and can
absorb moisture. Keep mats clean.
• Do not use latex or rubber-backed mats on the DLVT flooring, as certain compounds in these materials can permanently stain the flooring.
Mats to lay on LVF should be labeled as ‘non-staining’. Avoid tracking in tar or asphalt from driveways, as this can discolor vinyl.
• Avoid the use of stiletto heels on your floor as they can cause permanent damage.
• Post installation temperature should be maintained between 65°-85°F (18.3°-29.4C).
• Avoid exposure to direct sunlight for long periods of time. This type of exposure can cause expansion due to heat which may result in buckling
or other damage. Sunlight can also cause fading or discoloration. EF requires the use of UV protective film, blinds, curtains, or shades to assure
that LVF products are protected from the sun.
• Protect your floor against burns. Cover vinyl flooring near fireplaces and open flame sources and near any extremely hot items
ROUTINE CARE AND MAINTENANCE
• Regularly sweep or vacuum thoroughly (once per week minimum). If vacuuming, do not use vacuum beater bar.
• Where robotic vacuums are used, confirm that abrasive contact does not occur and keep the wheels of the machine clean.
• Remove scuffs and excessive soil by carefully rubbing with a recommended solution and soft absorbent cloth. Never use highly abrasive tools
or solutions. Never use an orbital buffing machine.
• A residential steam mop with a white cloth under the head may be used to maintain your PureGrain High-Def flooring.
• Promptly remove spills.
• Damp mop often using a pH neutral resilient floor cleaner. Do not soak or saturate flooring. Always test cleaners in an inconspicuous area or
an unused sample before using them on the entire floor.
• For scuffs (material left on the surface due to friction), try rubbing a tennis ball over the area. A slit can be cut in the ball so that it can be
placed on the end of a broom handle if there is a sizeable area to be covered.
• The following items must be cleaned promptly as they can permanently discolor the flooring: ink, iodine, mercurochrome, betadine, dyes,
asphalt, tar, grease, baking grease, cooking oils, and nail polish
Any spill should be cleaned immediately. The longer the spilled materials are left on the floor, the greater the risk of permanent staining. Please
refer to the stain removal chart below. The chart is provided as insight and covers some materials that are not covered by the flooring warranty.
When spot cleaning, it may be necessary to clean the entire floor to achieve a uniform look. EF recommends keeping a list of products used to clean
flooring which may be important if a warranty service is needed.
Do Not Use the Following on EF DLVT:
• Vinegar
• “Mop and Shine” products
• Soap Based Detergents or Oil Soaps
• Abrasive Cleaners or Compounds
• Floor Wax
• Ammonia
• Vacuum with a rotating beater bar
• One step cleaner/polishes
• Harsh scouring or buffing pads or tools
